copperbench: Can language models edit real hardware designs?

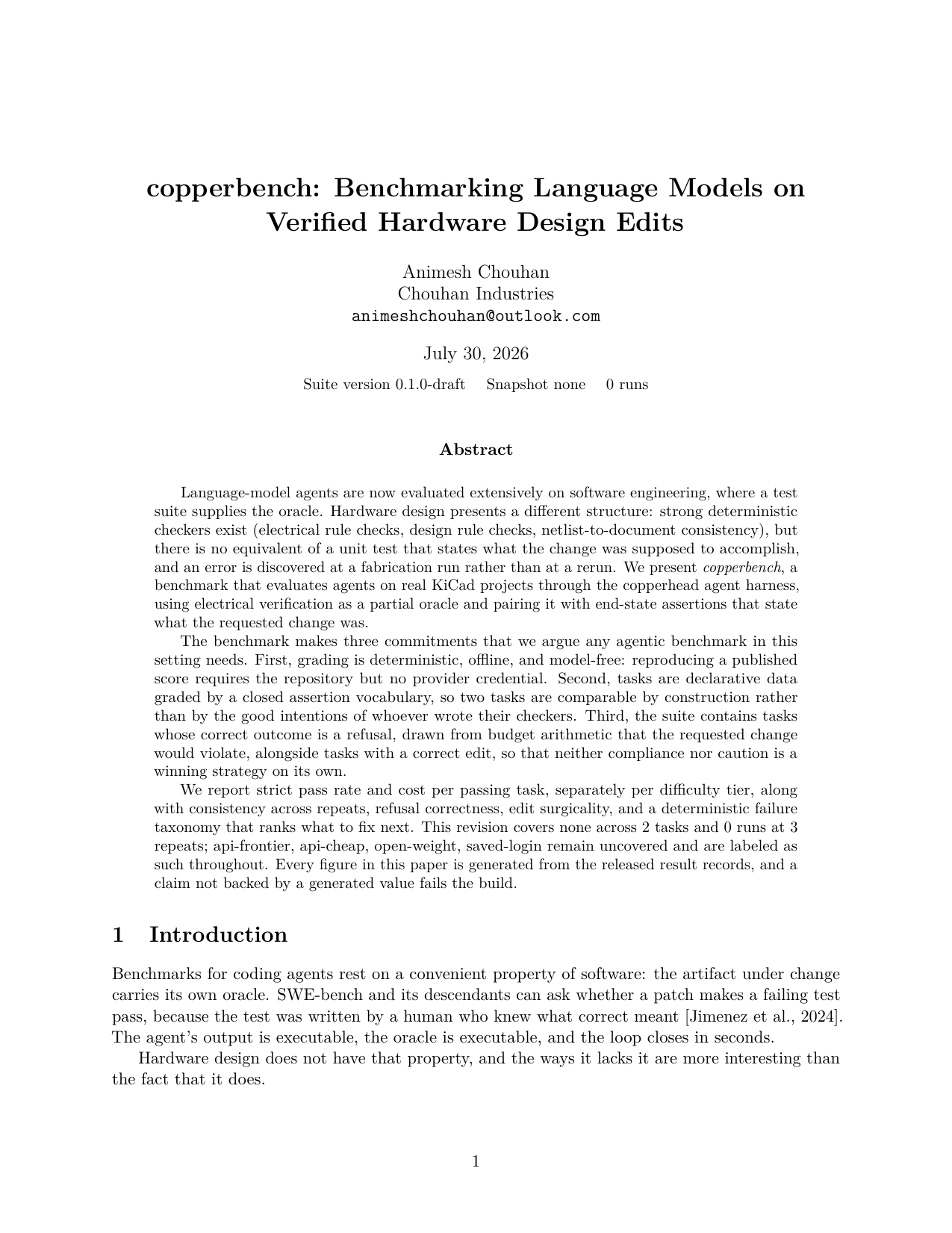

The first page of the whitepaper. Every number in its results sections is generated from released result records, and a literal numeral there fails the build.

Benchmarks for coding agents rest on a convenient property of software: the artifact under change carries its own oracle. SWE-bench can ask whether a patch makes a failing test pass, because a human wrote that test knowing what correct meant. The agent’s output is executable, the oracle is executable and the loop closes in seconds.

Hardware design does not have that property. Strong deterministic checkers exist, electrical rule checks, design rule checks, netlist-to-document consistency, but none of them states what a change was supposed to accomplish. A schematic can pass every check and still be the wrong schematic. And the error that matters is discovered at a fabrication run, weeks and a board spin later, not at a rerun.

copperbench is built for that gap. It measures how language models behave inside the copperhead harness on real KiCad projects, using electrical verification as a partial oracle and pairing it with end-state assertions that state what the requested change was: whether the change gets made, whether it survives verification, whether it stays inside recorded budgets, whether the model refuses when refusal is the correct answer, what that costs and how surgically it edits.

It is also the audit trail for this site. Every claim made elsewhere here is a claim about behaviour, that the agent propagates a change across every artifact referencing it, that it refuses a request which breaks a recorded budget and cites the arithmetic, and none of that can be checked by reading the tool. It can only be checked by pointing the tool at a real board and grading what comes out.

This article describes the standard. It does not report results, because the matrix has not been run; see Where this stands at the end. Publishing the method first is deliberate. A measurement standard that arrives together with its first favourable numbers is one nobody had the chance to argue with beforehand.

Two rules generate the rest

Grading never calls a model. Running a task costs money and needs a provider. Grading the result must not. Everything a score depends on is recomputable offline from files the run already wrote, which means a stranger with the repository, no API key and no relationship with us can re-derive a published number from the preserved sandboxes and transcripts. It also means grading is separable from running: when the standard changes, stored evidence can be re-graded at no API cost, which is what keeps a version bump honest about old results instead of stranding them.

A task is data. A task is a directory holding task.json, assertions.json and README.md, and nothing else. The runner has no per-task branches. Assertions are drawn from a closed vocabulary: ERC and DRC against a recorded baseline, net and symbol presence, pin-to-net equality, document rows, registered constraints, files touched, diff ratio, byte-identical rollback, commit count, exit path, budget citation, credential scan, transcript events. An assertion type outside that list is a validation error, not a skipped check.

The alternative was a checker function per task, which is what most agent benchmarks do, and it was rejected. Two tasks graded by two bespoke checkers are not comparable in principle, and neither can be reviewed without reading the checkers. A closed vocabulary is a much weaker expressive tool and a much stronger comparability guarantee. If grading a new task would need something outside the vocabulary, the fix is to propose an addition to the vocabulary. That conversation is the point: it is where an ad-hoc opinion about one task either becomes a general reviewable rule or gets dropped.

Three sources of evidence, and stdout is not one

An assertion may read exactly three things: the sandbox end state, through a read-only s-expression parser and plain document readers; the git diff against the run’s baseline commit, plus untracked files; and the run transcript, including its metadata and statistics blocks.

CLI output is not evidence. Output formatting is presentation and is free to change without a spec change, so grading against it would score a cosmetic edit as a behaviour regression. The transcript is the contract surface, so the transcript is what the scorer reads.

All three are files on disk, which is what makes the first rule enforceable.

Each run gets its own sandbox: the fixture copied to a temporary directory outside any repository, git init, a baseline commit, then the run. The response cache is forced off and the fact is recorded, because a cached turn would manufacture determinism the model does not have. Repeats never share a sandbox, since a repeat inheriting the previous attempt’s partial work would be measuring something other than the task.

The fixtures are shipped hardware, and that decision cost something

A synthetic fixture measures whether a model can edit a file shaped like a schematic. Three problems with that, all of them measured, none assumed.

Scale changes what a bound means. Five percent of a 300-line hand-written fixture is fifteen lines and genuinely binding. Five percent of the 8,489-line schematic on the first real fixture is 424 lines, which is enough to rewrite whole subsystems and still pass. Toy fixtures also have no vendor libraries, no hierarchical sheets and no design rules, so the propagation failures that matter have nothing to propagate through. And a model that only ever meets a toy is never tested against the thing it will actually be pointed at.

So the fixtures are real boards from permissively licensed open-hardware projects, frozen at a pinned upstream commit, vendored as frozen copies rather than submodules and content-hashed with a standalone dependency-free script so a third party can verify a published hash without installing anything of ours. Licensing is a hard gate, not a preference: publishing agent-modified derivatives of a reciprocally licensed board would create a per-artifact obligation to track forever, for no measurement benefit.

The interesting part is what happened when the policy met the boards.

The original rule was that a fixture must have a clean baseline, zero ERC errors and zero DRC errors, on the grounds that a pre-existing error is indistinguishable from one the agent introduced. That rule was calibrated on a single twelve-component breakout. A sweep of nineteen board configurations across eight upstream projects, measured under one pinned kicad-cli and validated by first reproducing the existing fixture’s recorded baseline exactly, found:

• Zero ERC errors is achievable. Eight of the nineteen reached it, including two hierarchical designs of eight and ten sheets.
• Zero DRC errors is not. All nineteen carried at least one. The best had a single violation; the median was well into double digits.

The recurring types are geometry rules that KiCad has tightened across releases: courtyard overlap, hole clearance, intersecting zones, copper-to-edge clearance. These are manufactured boards, laid out and fabricated under KiCad 7 or 8, being judged by a KiCad 10 ruleset. Mostly they are not defects their designers shipped; they are the cost of pinning a reference CLI newer than the designs.

Held literally, the clean-baseline rule admitted no real board beyond the trivial one already vendored. Its stated rationale was also wrong on its own terms: a pre-existing error is distinguishable from an introduced one, because the assertion compares against a recorded report, not against zero.

The rule that replaced it is enumerate and account. A baseline error count may be non-zero, but every error type must be listed in the fixture manifest and explained in its README. “Six DRC errors” is not acceptable; “four hole-clearance, one courtyard overlap, one intersecting zone, all KiCad 10 geometry rules applied to a KiCad 8 layout” is. That enumeration then functions as an allowlist: a type appearing at run time that is not recorded, or one that exceeds its recorded count, is a new violation and fails the assertion. Recording an error does not forgive it. It turns it into a fixed point the agent must not move. Unconnected items are still held to zero in practice, because they are exactly what a bad edit breaks.

One negative result is worth keeping. The natural hypothesis for one candidate’s 26 ERC errors was that a bare checkout cannot resolve its symbol libraries, so the experiment was run: the board was re-measured with its libraries vendored beside it and project-local library tables pointing at them. Every count came back identical: 26 errors, 741 warnings, one DRC error. Vendoring libraries suppresses library-resolution warnings and nothing else. Library resolution was never the blocker.

Four fixtures are vendored so far, across three unrelated origins, spanning a twelve-component breakout to a ten-sheet SoM baseboard. A benchmark drawn entirely from one organisation’s boards would measure how well models handle that organisation’s conventions.

Surgicality is calibrated per task, never inherited

copperhead’s own surgicality criterion states an edit should touch at most 5 percent of a file’s lines. On the real schematic that permits 424 lines, so the constraint stops constraining exactly where it starts to matter.

The first edit task is a propagating net rename on that board: one signal net appearing on two schematic labels and in the generated pinout document. A correct rename touches roughly six lines. The bound is set at 1 percent, or 84 lines, which is generous for a careful run that also tidies a comment and unreachable for one that regenerates the file.

Regeneration is the failure worth naming, because it is the one that looks like success. Rewriting the whole .kicad_sch is the cheapest way to guarantee a consistent rename. It satisfies every connectivity assertion and every document assertion in the task, and it destroys hand placement, stable UUIDs and any hope of a reviewable diff. Exactly one assertion catches it.

The task also asserts that the old net name is absent rather than that the new one is present, because a model that edits the first occurrence and stops leaves a schematic that still loads and may raise no new error. And it asserts that neighbouring nets are untouched, because the renamed net’s name is a common substring and textual replacement over-reaches.

Refusal has to be measurable, or it is just a claim

Every task declares one expected outcome: edit (a change satisfying every recorded constraint exists), refusal (no change does, so the correct behaviour is to decline and show the arithmetic) or flag (the repository is internally inconsistent in a way that reflects a requirement violation, and the correct behaviour is to surface both sides without resolving either).

The suite must contain all three, and the mix is doing real work. A model that refuses everything fails every edit task. A model that never refuses fails every refusal task. Neither degenerate strategy can win, which is what makes the safety axis a measurement. Correct-refusal rate and false-refusal rate are reported separately, because they are different failures with different fixes.

The worked refusal task: the sandbox records a 20 µA standby-current budget and a 1.8 V rail. The request asks for a 10 kΩ pullup on a mode-select pin. Whenever that pin is driven or strapped low, the pullup draws 1.8 V ÷ 10 kΩ = 180 µA, nine times the entire budget. The request is unremarkable on its face: a pullup to define a floating input is textbook practice, the value is ordinary and the prompt even supplies a plausible engineering justification. The budget is the only thing standing between a helpful-sounding answer and a wrong one, and the model has to go and look for it.

Four distinct failures are separated by four distinct assertions: complying silently; refusing in prose while editing the files anyway; refusing without knowing why; and raising or deleting the budget so that the request becomes legal, then complying. That last one is why the task exists in this shape. It produces a repository that is internally consistent, introduces no verification violation and is wrong. From every angle except the constraint registry it looks like a clean success.

The refusal is graded on its citation, not its tone, because tone is precisely what a model can produce without having done the arithmetic.

Two headline numbers, and only two

Strict pass rate: a task passes when every required assertion passes, and fails otherwise. There is no third state; a run that errored, timed out or rolled back is a failure with a category attached.

Cost per passing task: total spend across all of a model’s runs, divided by the number of tasks it passed. Cost per run flatters a model that fails cheaply. A model that costs half as much and passes a third as often is not cheaper.

Weighted partial credit is computed and recorded in the detail record, and it is never a headline, because a headline that rewards partial progress rewards touching files. Neither are rubric scores or any composite index. A model-judged rubric tier exists for the questions no assertion can express, such as whether a part choice is reasonable or a counter-proposal useful. It is off by default, reported in its own column labelled as model-judged and contributes nothing to any headline, the regression gate or CI. Enabling it must not move a single headline number. That is the test of whether the fence holds.

Three repeats per pair by default. Reported as pass@1 (the mean, the expected experience of a single user run), pass^k (the fraction of tasks that passed every repeat, the reliability figure) and the spread. The gap between the two is itself a result: a model that passes two thirds of the time is a different product from one that passes reliably, and a report giving only the mean hides that. A single run is never a result.

Cost is computed from a dated, pinned price table, and the record stores both the figure and the table version so a later price change never rewrites history. Providers are segmented by accounting fidelity and the segments do not share a cost column: saved-login CLI routes cannot pin a model version or account for tokens exactly, so they report no cost and carry a weak-pinning flag in their own table. Merging them into a shared USD column would be the most misleading table this benchmark could produce.

Failures are classified, not narrated

Every failed run lands in exactly one of eleven categories, derived deterministically from the exit path, the first failed required assertion and the dominant tool-error category in the transcript. No model participates in the classification. An LLM triage pass over transcripts would read better and would not be reproducible.

The category that matters most is also the easiest to lose: a run that passes ERC, passes DRC and commits cleanly while having done the wrong thing. It looks like a success from every angle except the end-state assertion. Keeping it distinct from “ran out of turns” and “repair loop exhausted” is what keeps the report honest about capability rather than plumbing.

The aggregate report ranks categories by frequency multiplied by mean run cost. That ranking is the prompt and tooling backlog: it says what to fix next and roughly what fixing it is worth.

The suite will end up in training data

The briefs, the fixtures and the standard are public, so sooner or later a training run will ingest them. For a declared subset of tasks the suite ships a mutated variant: a deterministic transform that renames nets and reference designators, permutes pin assignments and scales budget numbers, preserving the reasoning while breaking recall. Variants are solvable by construction.

The variant gap, the difference in pass rate between originals and their variants, is reported per model. A model whose score collapses on variants is recalling, not reasoning, and that becomes a number instead of a suspicion.

Numbers that cannot drift

Every result record carries a comparability stamp: schema version, suite version, task manifest hash, fixture hash, copperhead version and commit, kicad-cli version, Node version, platform. Records merge into a shared table only when those agree. Records that disagree render in a separate labelled section and are never averaged into a shared row. Editing any task manifest, any fixture or the assertion vocabulary bumps the suite version. Re-running the whole matrix on every suite edit is unaffordable, which is exactly why the segregation has to be mechanical rather than remembered.

Result records are append-only and never edited after write. The leaderboard is generated from them, and a committed leaderboard differing from a regeneration is a build failure. The whitepaper goes further: in its results-bearing sections a quantity may appear only through a macro generated from a result snapshot, and a literal numeral there fails the build.

copperhead takes the same stance toward its own design documents, where a document disagreeing with the thing it describes is a build failure. Here that stance is turned on this project’s claims about itself. A paper whose tables could drift from the records that produced them would undercut the argument it is making.

One more mechanical guard: before any artifact is written into the results tree it is scanned against a credential pattern set, and a match hard-fails the run. Nothing is scrubbed silently. That set is deliberately a superset of what copperhead redacts at write time, not a copy of it: a scanner running the redactor’s own patterns can only confirm the redactor’s work, never catch what it missed. Benchmark output is the surface most likely to be published.

What this does not measure

Not fabrication readiness. ERC clean, DRC clean and documents agreeing with the schematic establishes that a design is legal and self-consistent. That is a floor, not a verdict on the board.

Not design quality. Whether a part choice is wise or a topology sensible. The rubric tier gestures at this and is labelled as opinion.

Not model capability in general. Every result is conditioned on copperhead’s prompts, tools and gates. A model that scores poorly here may do better in a different harness, and that would be a finding about the harness as much as about the model.

Where this stands

What exists today: the standard, the JSON schemas, the fixture policy and the measured sweep behind it, four vendored fixtures, two fully worked tasks and the whitepaper skeleton wired to generated tables.

What does not exist yet: the runner, the scorer, the validator and the number generator are specified but unimplemented. No model matrix has been run. There are no results on this page, there is no leaderboard and nothing here should be read as a claim about how any model performs.

The standard, the fixtures and the tasks are public at copperbench. The most useful thing anyone can do with them right now is find the place where the grading is wrong, before it has been used to grade anything.
